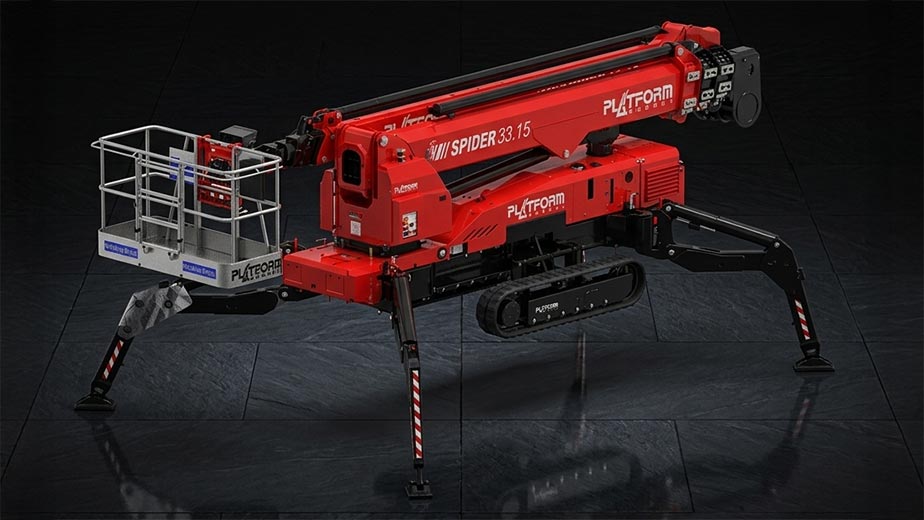

The Platform Basket Spider 33.15 is an articulated tracked lift with telescopic boom sections, designed to provide excellent reach and the ability to work over obstacles thanks to its generous ground clearance. Its working envelope delivers strong performance across a wide range of access applications.
This self-propelled platform features a compact design, and when fully stowed with the basket rotated, the machine maintains a very narrow transport width, making it easier to move through restricted access points.
The Spider 33.15 is also equipped with an extendable crawler track undercarriage incorporating Platform Basket’s specialised system. This allows the tracks to widen for improved stability and manoeuvrability during operation, while the narrower position reduces overall height and improves accessibility when moving the machine through tighter spaces.
Platform Basket Spider 33.15/300 specifications
| Max Working Height | 32.40m |
| Max Platform Height | 30.40m |
| Max Outreach | 15.60m |
| Safe Working Load | 300kg |
| Cage Dimensions | 1.63m x 0.87m |
| Height | 1.39m |
| Length | 7.13m |
| Gross Vehicle Weight | 6,500kg |
