The compact crawler crane in the 36-metre class is engineered to maintain stability and performance even on challenging ground conditions. Its advanced crawler chassis delivers excellent traction, low ground pressure, and precise manoeuvrability across surfaces such as, gravel, or turf.
With a maximum boom length of 36 m and lifting capacities of up to 2,400 kg, it combines strong performance with a lightweight design of just 4,650 kg. Even at a 250 kg load, it achieves outreach up to 23 m, supported by a fully hydraulic telescopic hybrid mast system.
Travel speeds of up to 2.4 km/h (creep) and 4.5 km/h (max) ensure efficient positioning on site. The crane is powered by a high-performance diesel engine, with an optional electric drive offering identical output for low-noise, zero-emission operation indoors or in sensitive environments.
A flexible stabiliser system with up to 27,000 N support pressure, automatic self-levelling, and intuitive radio remote control with colour display ensures fast, safe setup. The machine can also be quickly converted into an aerial work platform with a rotating cage, no tools required, making it a versatile solution for glazing, façade work, industrial projects, and landscaping applications.

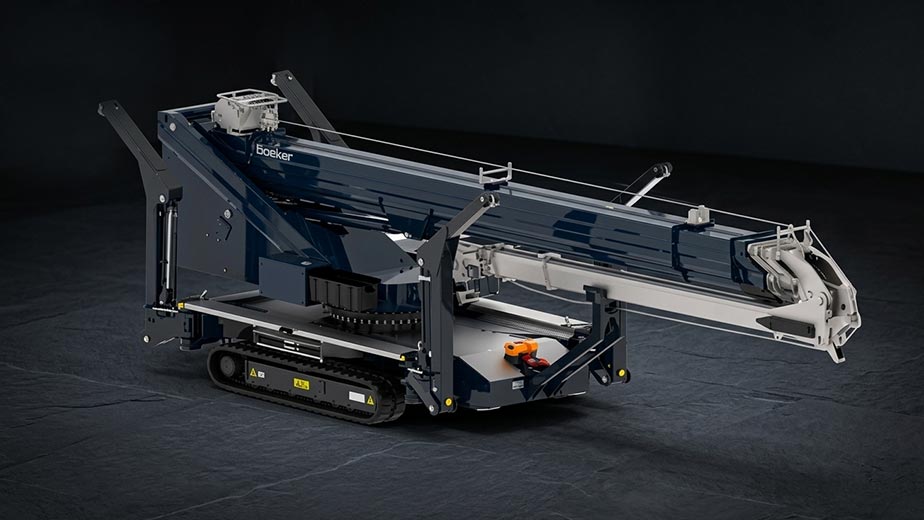

Bocker RK 36/2400 specifications
| Permissable gross vehicle weight | 4.5t |
| Maximum payload | 1,500kg (opt. 2,400kg) |
| Maximum extension length | 34.0m (opt. 36.0m) |
| Hook height (maximum) | 32.6m (opt. 34.7m) |
| Working height up to boom | 23.4m |
| Boom extendable | 4.9m / 8.0m / 11.1m (opt. 13.1m) |
| Boom payload | 2400kg / 1500kg / 800kg / 500kg (opt. 250kg) |
| Main mast angle | 85° |
| Boom angle | 162° |
| Pivoting range | +/- 310° |
| Hook speed | 50m / min |
